The DuraSeal™ 4-Way Diverter Valve design incorporates proven performance features and characteristics such as ASME B16.34, multi-turn actuation, in-line maintenance, and automatic pressure gauge. You can always rely on Franklin’s commitment to manufacture, deliver, and service the valves that meet your challenging requirements.
DuraSeal 4-Way Diverter Valve SPECIFICATIONS
| Size Range | 2in – 16in |
| Pressure Rating | Class 150 – Class 600 |
| Elastomer Seals | Viton GF, Viton GFLT, Viton ETP, Kalrez |
| Body Materials | A216 WCB, A216 WCC, A352 LCC |
| Stem/Plug Material | A216 WCB, A216 WCC, A350 LF2, A352 LCC, all with 2-3 mils of ENP |
| Temperature Rating | -20F to 400F (Standard Temp) -50F to 400F (Low Temp) |
| Certification: | PED, PESR |
| Operation: | Manual, Electric |
| Flow & Torque Data: | PUB-Q05-EN |
| Actuator Adaption: | QS-0014 |
| Installation & Operations Manual: | PUB-Q01-EN |
|
Exploded View-Cycle |
Slip Swap |
EXAMPLE MODELS FOR THE
DuraSeal 4-Way Diverter Valve

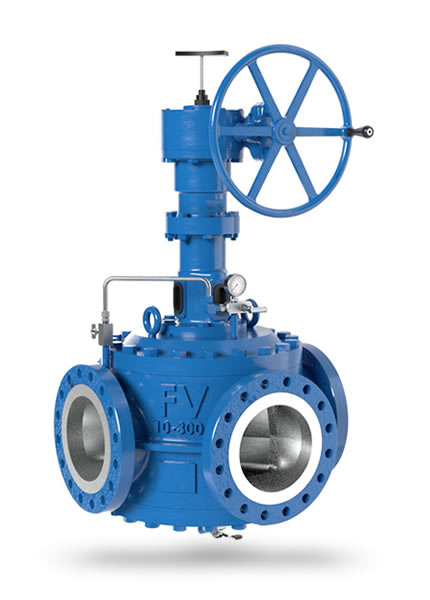

DuraSeal 4-Way Diverter Valve
10” 300#

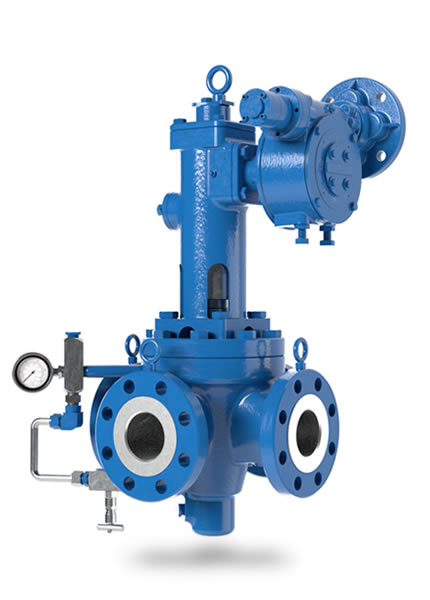

DuraSeal 4-Way Diverter Valve
3” 300#

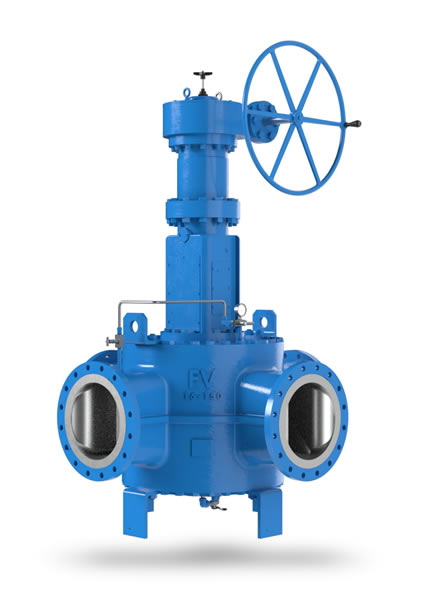

DuraSeal 4-Way Diverter Valve
16” 150#
